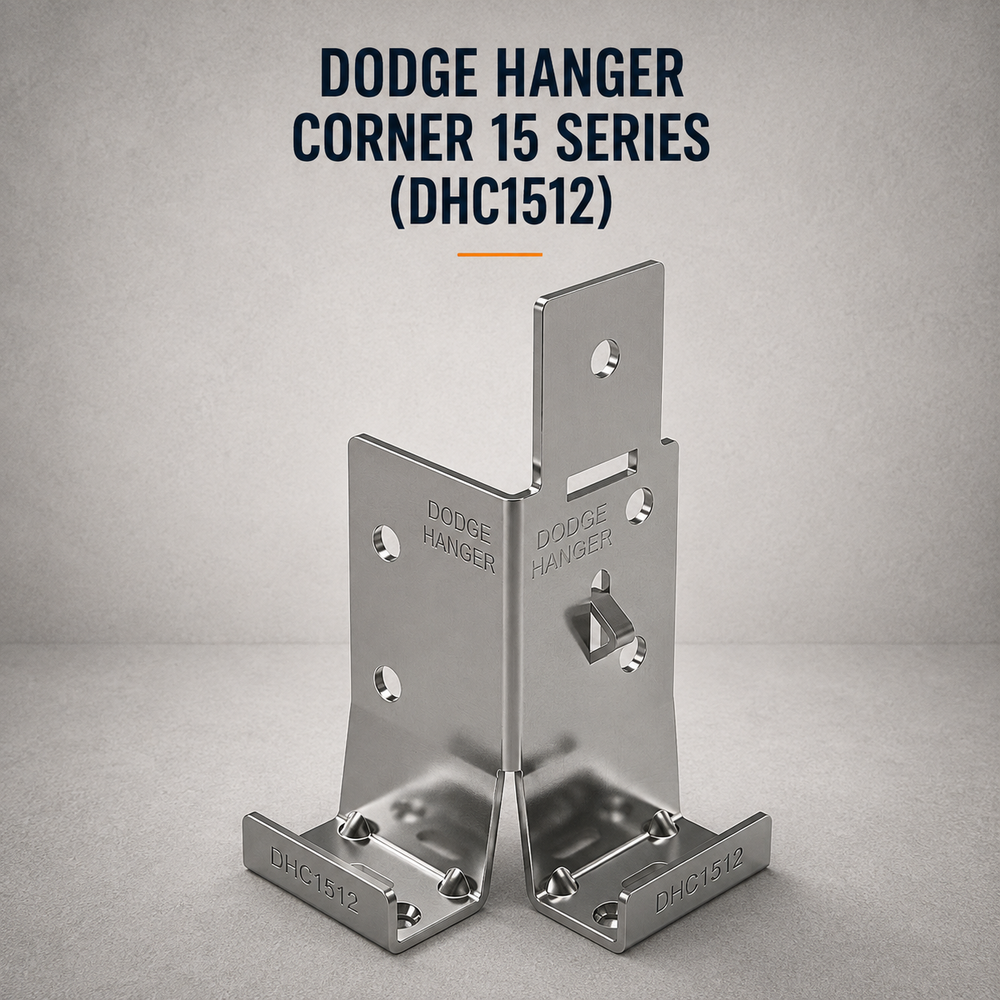

Dodge Hanger Corner 15 – Drop-System Outside-Corner Support
An outside-corner support for compatible Drop System wall installations using Dodge Hanger Rear or Top Leveler supports.
Three quick benefits:
- Establishes outside-corner support for Drop System installations.
- Compatible with Rear and Top Leveler wall systems.
- Available in saddle sizes to match compatible material thicknesses.
Why This Model
When the starter row needs to extend below the mudsill, the outside corners need to establish the corresponding drop.
That's the job of Corner 15.
DHC15 is the outside-corner component used with either Dodge Hanger Top Leveler (DHTL15) or Dodge Hanger Rear (DHR15) for compatible wall sheathing and siding Drop System installations.
When used with DHTL, the current instructions state that the sheathing hangs approximately 1 inch below the foundation/mudsill position.
Best For
- Outside corners in Drop System wall installations
- Sheathing requiring approximately a 1-inch drop
- Projects using DHTL15
- Projects using DHR15
- Compatible siding/sheathing applications
Choose Another Model When
- You need a flush/no-drop outside corner → Corner 0
- You need support along the wall → Rear or Top Leveler
- You need a flush wall support → Bottom
- You need leveling functionality → Top Leveler
Made In: USA
Compatible With: OSB Sheathing, James Hardie Siding, Roof Decking
System: Patented No Drop System®
Available saddle sizes:
Select the DHC15 and companion hanger saddle widths to fit the thickness of the material being installed.
Bottom — Flush support · No Drop
Rear — Drop support · Drop
Top Leveler — Level + drop support · Level / Drop
Corner 0 — Flush outside corner · No Drop
Corner 15 — Dropped outside corner · Drop
What is Corner 15 used for?
Outside corners in compatible Drop System wall-sheathing and siding installations.
Which hangers work with Corner 15?
Dodge Hanger Rear (DHR15) and Dodge Hanger Top Leveler (DHTL15).
How is Corner 15 different from Corner 0?
Corner 0 belongs to the flush/no-drop system. Corner 15 belongs to the Drop System.
How much drop does the system provide?
The current DHC15/DHTL installation instructions describe approximately a 1-inch drop.
How many Corner 15 hangers do I need?
The current instructions specify one DHC15 for each outside corner.
What if I can't access the top of the mudsill?
The current installation instructions direct the installer to use the DHR in that condition.
Step 1 – Position Corner 15
Use a DHC15 at each outside corner.
Step 2 – Attach to the mudsill
Position the hanger according to the installation instructions and secure it with approved fasteners.
Step 3 – Install the companion supports
Use Top Leveler when top-of-mudsill access and/or leveling conditions call for it. The current instructions identify Rear as an alternative when the top of the mudsill cannot be accessed.
Step 4 – Place the material
Rest the starter-row sheathing in the hanger saddles, establish the required drop and complete fasteni
Three Ways To Use This Hanger
Siding
Hangs the starter row of siding flush with the bottom of the sheathing — no measuring, no second worker holding it in place.
Sheathing
Installs the starter row of exterior sheathing flush with the mudsill, over a foundation wall, without it dropping out of level.
Roofing
Hangs the starter row of roof decking flush with the rafter tail end when no fascia board is used.
Hanging Siding Alone Isn't Just Hard. It's Dangerous.
Every course means holding a heavy panel dead level while it can slip, drop, or throw your line off. Most crews solve this by burning a second worker on a job one person should be able to run.
One worker holds the panel while another marks and levels it — every single course, every wall.
One slip and the panel drops — onto the ground, a worker, or the panel itself cracks.
Uneven courses mean callbacks, rework, and lost margin on the job.
A full crew gets tied up on work one person could run alone.
Recommended For Your Project
What Builders Are Saying
Ran a full sheathing job solo with these. No more waiting on a second guy to hold the panel — huge time saver.
Every course came out level without re-checking. Stainless steel held up fine through a wet install week too.
First-time DIYer here. Instructions were simple and the hanger genuinely kept the starter row from shifting.
Before You Order
Not always — this hanger alone hangs a starter row of siding, sheathing, or roof decking. For a full no-drop system over a foundation, pair with a matching corner hanger.
Yes. It locks material in place for a no-movement nail-off, so it won't shift while you fasten — check your local building code for approved fasteners.
Match the saddle width to your material thickness. See the Installation Guide above for the full size chart.
