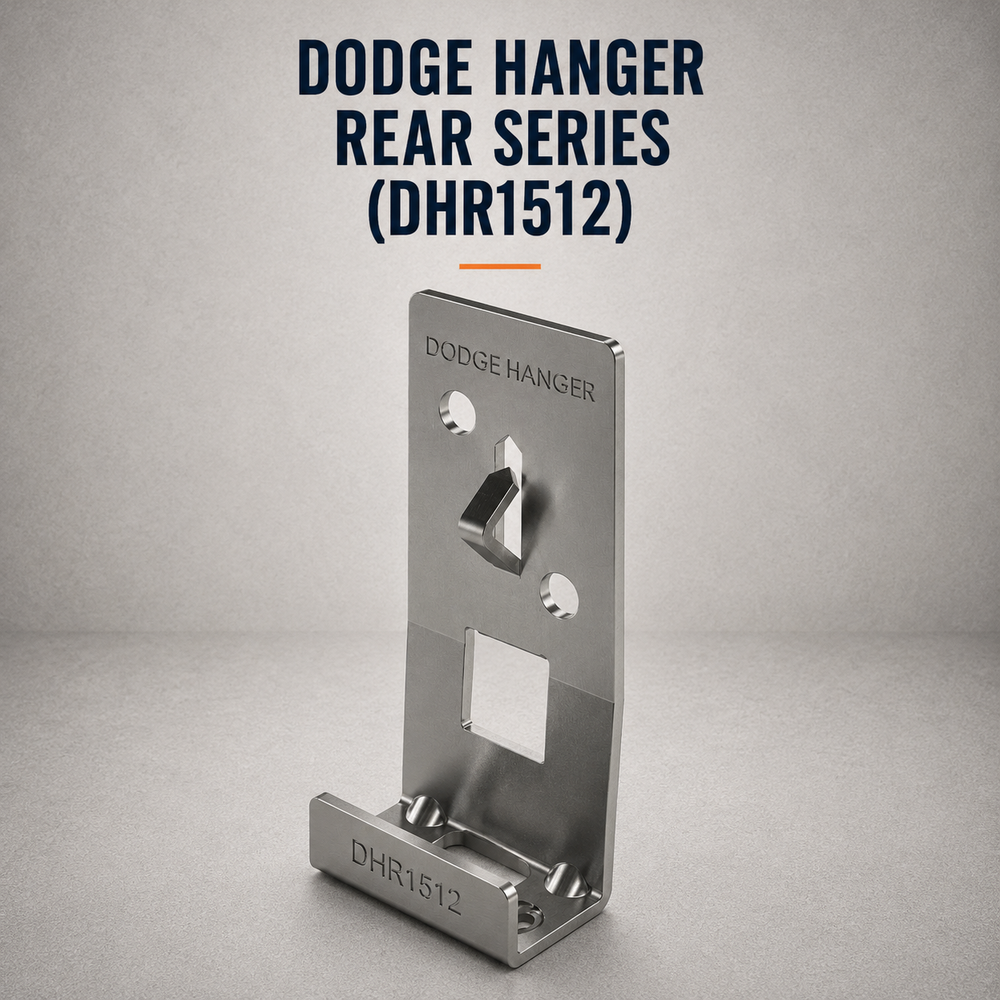

DROP SYSTEM® Dodge Hanger Rear 15 series (10 pcs)

DROP SYSTEM® Dodge Hanger Rear 15 series (10 pcs)

Regular price $14.90 USD
Regular price Sale price $14.90 USD
Sale Sold out
Saddle Sizes

Model Number:  DHR15-10pack
Item sold in packs of 10.


Installation Guide: (Click Here)

Dodge Hangers are an incredibly useful corrosion resistant, stainless steel construction hardware for installing the starter row of your wall sheathing, siding and roof decking with plywood, OSB, T1-11,  cement boards, or lap siding by one man, which can save a lot of money on labor. Dodge Hangers promote safety and ergonomics, making them easy and comfortable to use. They are able to support a significant amount of weight without issue, taking the burden off the man. Additionally, the Dodge Hangers will lock the material into place for a no movement nail-off. You can work on all sides independently and still have consistency, uniformity and accuracy of installation.



The Dodge Hanger Rear (DHR) series will hang your wall sheathing or siding material with a 1" drop and are compatible with the Dodge Hanger Corner 15 (DHC15 series), which are for the outside corners of the building.



The DHR series will also hang the starter row of your roof decking with an allowance for 3/4" to 1 1/4" fascia.



Select the size you need based on the thickness of the material being installed.  Select DHR1538 to install 5/16", 11/32", or 3/8" thick material.  Select DHR1512 to install 7/16", 15/32", or 1/2" material.  Select the DHR1558 to install 9/16", 19/32", 5/8" material..








SIDING DROP SYSTEM®


The Dodge Hanger Rear® (DHR) is part of a drop system that is designed to install the starter row of siding below the bottom edge of the sheathing to create a barrier at the mudsill.

Use the DHR to hang your siding if you installed your sheathing even or flush with the top of the foundation wall using the DHC0 and DHB no drop system.

Select the DHR with a saddle width that most closely fits the thickness of the siding material to be installed.  Current available saddle widths are 3/8", 1/2" and 5/8."







1. Place a DHR on the sheathing where it is no more than 6” from either end of the siding to be hung. Use (2) DHR’s per piece of siding.  Add hangers as needed for longer pieces.


2.
 Lightly hammer the quick-mount stab tab on the DHR into the sheathing to help hold the hanger in place.







3. Install the DHR on the sheathing using Approved Fasteners*.


4. Place your siding on the DHR’s to hold the starter row of siding.

*Check your local building code.







SHEATHING DROP SYSTEM®


 Use the Dodge Hanger Corner® 15 (DHC15) along with the Dodge Hanger Top Leveler®(DHTL15) or Dodge Hanger Rear® (DHR15) to install the starter row of the sheathing with a drop below the mudsill.


Select the DHC15 and the DHTL15 with saddle widths that fit the thickness of the sheathing material to be installed.  Currently the available saddle widths are 3/8", 1/2" and 5/8".




ROOFING - FASCIA SYSTEM


Dodge Hanger Rear® (DHR) allows you to deck the roof with the proper space created for the installation of ¾” to 1 ¼” thick fascia.

Select the DHR with a saddle width to match the thickness of the decking to be installed.  Currently available sizes are 3/8", 1/2" and 5/8".





SIZING CHART
