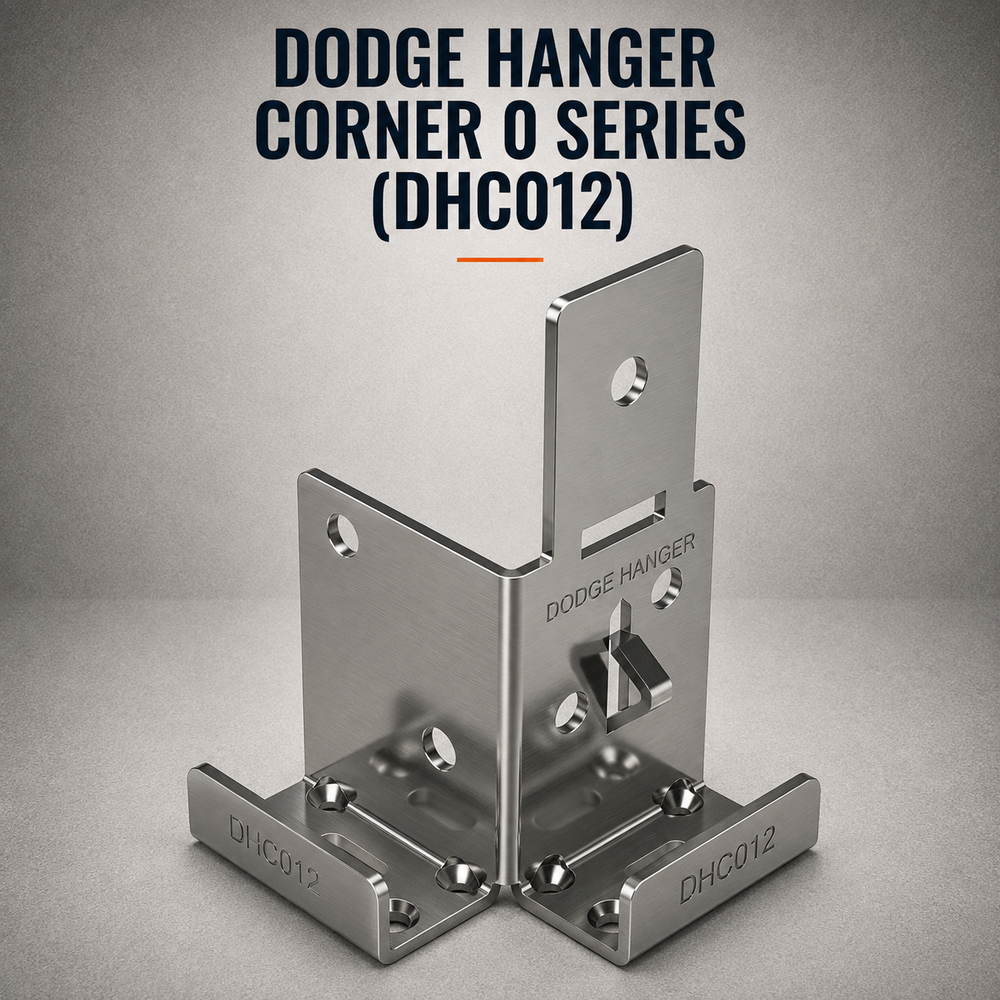

NO DROP SYSTEM® Dodge Hanger Corner 0 series (4 pcs)
Dodge Hanger Corner 0 – Flush Outside-Corner Support
System: No Drop System®
Model: DHC0
Pack: 4 pieces
An outside-corner support designed to establish the corner position for compatible flush/no-drop wall sheathing and siding installations using Dodge Hanger Bottom supports.
Three quick benefits:
- Supports outside corners in No Drop System installations.
- Works with Dodge Hanger Bottom supports along the wall.
- Available in saddle sizes matched to specific material thicknesses.
Why This Model
- Corner 0 solves a different problem from the Bottom: the outside corner.
For a flush wall-sheathing installation, Corner 0 is placed at each outside corner while Bottom hangers support the material along the rest of the wall.
- Together, DHC0 + DHB establish the Dodge Hangers No Drop System, where the starter row of exterior sheathing remains flush/even with the bottom of the mudsill rather than extending below it.
Best For
- Outside corners of No Drop System wall installations
- Flush starter-row sheathing
- Compatible siding conditions
- Projects using DHB25 along the wall
- 3/8-, 1/2-, or 5/8-inch saddle systems
Choose Another Model When
- The wall requires approximately a 1-inch drop → Corner 15
- You need support along the wall rather than at the corner → Bottom
- You need to establish a level starting line → Top Leveler
- You're using Rear/Top Leveler in a Drop System → Corner 15
Made In: USA
Compatible With: OSB Sheathing, James Hardie Siding, Roof Decking
System: Patented No Drop System®
3/8 in5/16, 11/32, 3/8 in DHC038
1/2 in7/16, 15/32, 1/2 in DHC012
5/8 in9/16, 19/32, 5/8 in DHC058
Bottom → Flush starter-row support → No Drop
Rear → Controlled drop / rear support →Drop
Top Leveler →Level-reference + drop supportLeveling / → Drop
Corner 0 →Flush outside corner → No Drop
Corner 15 → Dropped outside corner → Drop
What is Corner 0 for?
It provides outside-corner support for compatible flush/no-drop wall installations.
Which main hanger works with Corner 0?
Dodge Hanger Bottom (DHB25).
How many do I need?
The current installation instructions specify one DHC0 for each outside corner.
Is Corner 0 for Drop System installations?
No. For the Drop System using Rear or Top Leveler, use Corner 15.
Which size should I choose?
Choose according to actual material thickness using the sizing table above.
Step 1 – Install the corners: Use one DHC0 at each outside corner.
Step 2 – Position the DHC0: Bend the top tab over the mudsill as directed. The current instructions specify a different attachment method when the mudsill is larger than 1.5 inches.
Step 3 – Secure: Use the stab tab to assist with placement and secure the hanger with approved fasteners.
Step 4 – Complete the support line: Install DHB supports along the mudsill, place the sheathing into the hangers, align and fasten.
Three Ways To Use This Hanger
Siding
Hangs the starter row of siding flush with the bottom of the sheathing — no measuring, no second worker holding it in place.
Sheathing
Installs the starter row of exterior sheathing flush with the mudsill, over a foundation wall, without it dropping out of level.
Roofing
Hangs the starter row of roof decking flush with the rafter tail end when no fascia board is used.
Hanging Siding Alone Isn't Just Hard. It's Dangerous.
Every course means holding a heavy panel dead level while it can slip, drop, or throw your line off. Most crews solve this by burning a second worker on a job one person should be able to run.
One worker holds the panel while another marks and levels it — every single course, every wall.
One slip and the panel drops — onto the ground, a worker, or the panel itself cracks.
Uneven courses mean callbacks, rework, and lost margin on the job.
A full crew gets tied up on work one person could run alone.
Recommended For Your Project
What Builders Are Saying
Ran a full sheathing job solo with these. No more waiting on a second guy to hold the panel — huge time saver.
Every course came out level without re-checking. Stainless steel held up fine through a wet install week too.
First-time DIYer here. Instructions were simple and the hanger genuinely kept the starter row from shifting.
Before You Order
Not always — this hanger alone hangs a starter row of siding, sheathing, or roof decking. For a full no-drop system over a foundation, pair with a matching corner hanger.
Yes. It locks material in place for a no-movement nail-off, so it won't shift while you fasten — check your local building code for approved fasteners.
Match the saddle width to your material thickness. See the Installation Guide above for the full size chart.
